Hotel room thermostat with programmable

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Pieces | 100 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
BEYONDELEK
Model Number:
C09.H
Type:
Floor Heating Systems
Programmable:
Programmable
Certification:
TUV CE
Type::
Temperature Controller
Control Type::
Digital
Display Type:
Large LC
Supply Ability
Supply Ability:
1500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
White box(inner)100*100*6mm;
Brown cartons(outside) 530*330*220mm
Port
Ningbo or Shanghai
Lead Time :
5days

Hotel room thermostat with programmable

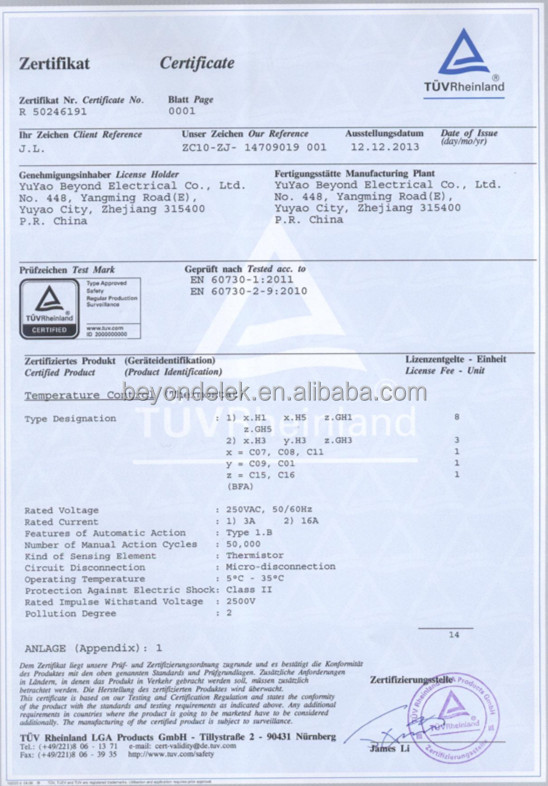

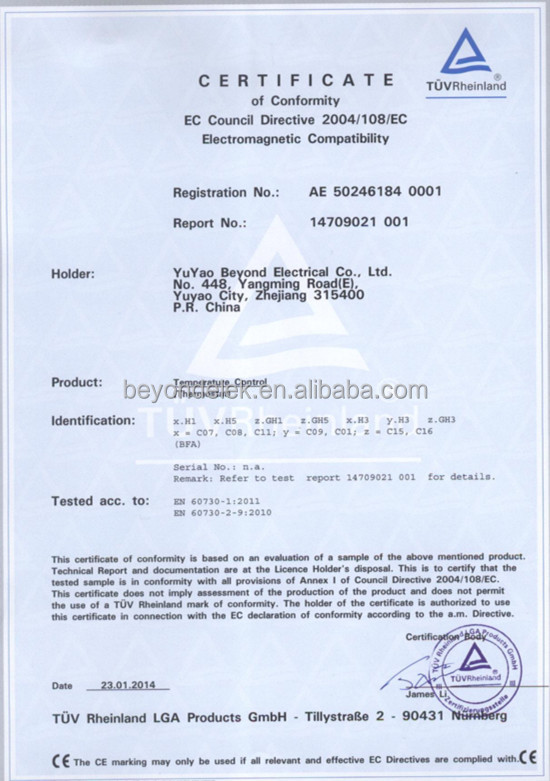

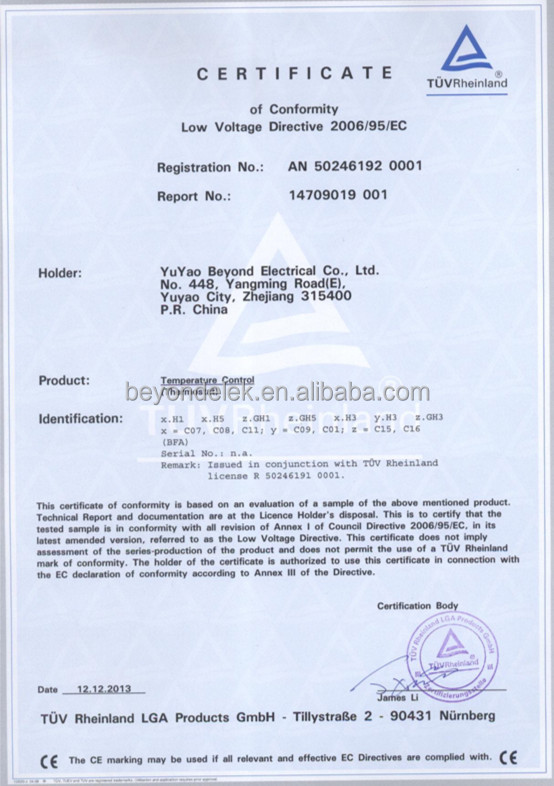

Certification: TUV CE
Temperature Controller
Control Type:Digital
Display Type: Large LCD


85-250 VAC

C09.H1   3A
C09.H3  16A

C09.H4  30A


Thermostat for hot water radiator heating systems

Basic function:
1. Recommended for control of underfloor heating and electrical heating.
2. Electronic on/off control up to 3600W, 16A or 6000W, 30A
3. Setting daily 4 periods of programmable, time settings, Kinds of periods of time modes. 5+2 / 6+1 / 7days

4. Large Back-lit display, LED screen, easy-to-see and read

5. Infrared remote-controlled function(option)
6. Built-in interrupter
7. Two work mode switchover: ( programmable ,non programmable)
8. Display temperature recalibrates
9. Low temperature protection function
10. Surveys, display and set room temperature
11. Memory function: Parameters are permanently held in memory and retained during power outages
12. Anti-freezing protection
13.2-sensor: Room sensor with floor limiter sensor  ( floor limiter sensor is option)


Product Specifications:
Voltage: 110(± 10%)VAC / 220(± 10%, -15%)VAC, 50/60Hz  24VAC ( option)
Differential Temperature: 1 ° C Max
Setting Temperature Range: 5° C~35° C
Mounting: Mounts directly onto wall or wall-box
Temperature range: 0° C - 40 ° C
Sensor type: NTC
Color: White ivory
Relative humidity: < 85% (23 ° C)
Dimensions: 86mm× 86mm× 13mm(H/W/D)
