BYC07 touch screen floor heating thermostat

FOB Reference Price:Get Latest Price
$1.00 - $99.00 / Pieces | 1 Piece/Pieces other (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
BEYONDELEK
Model Number:
BYC07AH.Y floor heating Thermostat
Type:
Heating
Display:
touchable LCD
Sensor QTY.:
2PCS
Application:
Floor heating system
Feedback:
24V
Supply Ability
Supply Ability:
20000 Piece/Pieces per Quarter other
Packaging & Delivery
Packaging Details
1pcs to a small box,
50pcs to a carton
Size of carton: 53cm*33cm*22cm
G.W. 13KGS/CARTON
Port
SHANGHAI
Lead Time :
5DAYS

BYC07 Touch screen floor heating thermostat
for floor heating,water system and electric heating
Load: 3A/16A/30A
TUV CE



Introduction
The BYC07AH.Y thermostat is a type of thermostat with large, touchable LCD, which is fit for floor heating, and controlling the actuator for water system and electric heating devices. With our thermostat, you can enjoy a cosy and comfortable living environment.
The BYC07AH.Y thermostat touch screen thermostats for heating also with modulating 0-10V and 2-10VDC both 85-250VAc and 24 VAC



Application
For the control of warm-water( floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
The BYC07AH.Y thermostat equipped with extremely small junction box and simple installation, is suitable for wall box all over the world.



Basic function:
1.Work modes (Heat ,Auto or Vent)

2.Multi. periods programe (5+2/6+1/7)

3.Low temperature protection function
4.Time on and Time off
5.Surveys, display and set room temperature
6.Large, clear, backlit display. easy-to-see and read
7.Memory function:parameters are permanently held in memory and retained during power outages.
8.Guards against the rime function
9.Infrared remote-controlled function(option)
10.Anti-freezing protection



Technical data
Temperature range :0 -40 centigrade
Set temperature range:5-35 centigrade
Mounting: mounts directly onto wall or wall-box
Voltage:85-250VAC 50/60Hz 24VAC
Output signal: relay 8A/VOLT. 0-10V 2-10V (INCLUDE 24VDC 80mA)
POWER consumption:0.5W
Accuracy:0.5Celsius
Accuracy displayed:0.1Celsius
Relative humidity: <85% (23 centigrade)
Sensor type:NTC
Display: LCD + Green back lighting
Control mode:heating

Body material: Antiflaming PC
Remote function: YES(optional)
Certification:CE
Dimensions: 86mm X 86mm X 12mm (H/W/D)
Size of display:60mm X 45mm (H/W)
WEIGHT:175G/PCS
Inner box size:100(L)x100(W)X60(H)mm

Output Type:       Y:2-10V ( INCLUDE 24VDC/80mA )

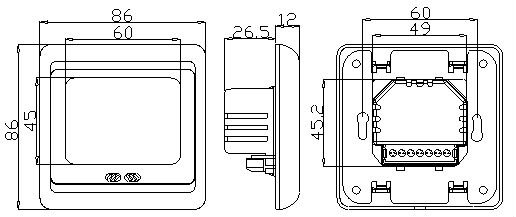

Dimensions                                                 unit:mm





Wiring Diagram for Heating Thermostat
